Parking & Reverse Sensors ---DSW Autotronic---

Rate.Volt.: 12V DC (24Vavailable)
Operating Range: 10.5V-16V DC (15-27V)
Rated Current: 20mA-200mA
Dete.Dist.: back 0.2-1.5m front 0.2-0.7m
Ultrasonic Frequency: 40KHz
Cont.Work.Temp.: -30-+80?
Disp.Work.Temp.: -20-+70?

Model No.: H006

Rated Voltage: 12V DC(24V available)
Operating Range: 10.5V-16V DC (15-27V)
Rated Current: 100mA-300mA
Dete.Dist.: 0.2-1.5m
Ultr.Freq.: 40KHz
Cont.Work.Temp.: -30-+80?
Disp.Work.Temp.: -20-+70?

Model No.: H989H2 H989H2(S) H989H4 H989H4(S)

Voltage: DC 12V
Power consumption: 4W(max)
Operating temperature:-40℃- +80℃
Range: 2m-0.4m
Alarm volume:75dB/55dB/0dB

Model No.: H680H2 H680H2(s) H680H4 H680H4(s)

Voltage: DC 12V
Power consumption: 4W(max)
Operating temperature: -40℃-+80℃
Range: 1.8m-0.4m
Alarm volume:75dB
Range of temperature measurement: -40℃- +60℃

Model No.: H380Y2(s) H380Y4(s)

Voltage: DC 12V
Power consumption: 4W(max)
Operating temperature: -40℃- +80℃
Range: 2m-0.4m
Alarm volume:75dB
Range of temperature measurement: -40℃- +60℃

Model No.: H969M2 H969L2

Voltage: DC 12V(optional DC24)
Power consumption: 4W(max)
Operating temperature: -40℃-+80℃
Range: 1.5m-0.4m
Alarm volume:75dB

Model No.: H680S2 H680S4

Voltage: DC 12V
Power consumption:4W(max)
Operating temperature: -40℃-+80℃
Range: 1.8m-0.4m
Alarm volume: 75Db

Model No.: H969H2 H969H4 H969H2(S) H969H4(S)

Voltage: DC 12V
Power consumption: 4W(max)
Operating temperature: -40℃-+80℃Range: 2m-0.4m
Alarm volume:75dB/55dB/0dB
Range of temperature measurement: -40℃- +60℃

Model No.: PS8284

Voltage: 12V Working Voltage Range: 10.5V~16V DC
Current: 50mA~180mA
Range of Detection: 0.2m~1.5m Temperature for CPU: -40C~+80C
Temperature for Display: -20C~+70C

Model No.: PS8286

Voltage: 12V Working Voltage Range: 10.5V~16V DC
Current: 50mA~180mA
Range of Detection: 0.2m~1.5m Temperature for CPU: -40 ~+80
Temperature for Display: -20C~+70C

Model No.: PS8586

Voltage: 12V Working Voltage Range: 10.5V~16V DC
Current: 50mA~180 mA
Range of Detection: 0.2m~1.5m Temperature for CPU: -40C~+80C
Temperature for Display: -20C~+70C

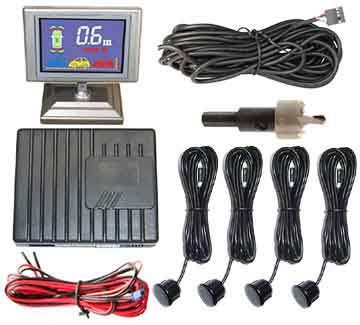

Model No.: PS8684

Voltage: 12V Working Voltage Range: 10.5V~16V DC
Current: 50mA~180mA
Range of Detection: 0.2m~1.5m Temperature for CPU: -40 C~+80C
Temperature for Display: -20C~+70C
