Showing1-12 of 38 Next >>

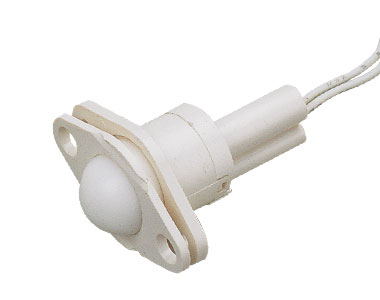

Model No.: MCR-1301MD
Recessed Mounted
Reed Switch / Open or Close Loop - Breakdown Voltage 100v / Max.Switch Current 0.5A - 3/4 Inch - 9.5*3.17 mm alno - #22 AWG 18 - Recessed Mounted - 11mm * 32mm - UL , CUL, CE - 3/8 Dia. Super Miniature Flush Mounted

Model No.: MCR-1301
Recessed Mounted
Roll Plunger Flush 360 Degree - Breakdown Voltage 100v / Max.Switch Current 0.5A - 0.25 Inch - Optional - AWG #22UL 1007 18 Inch - Surface Mount with Special Adhensive - 39.6*39.6mm - UL CUL - White ,Brown , Grey

Model No.: MCS-1203
Overhead Door Contact
Closed Loop - Breakdown Voltage 100v / Max.Switch Current 0.5A - 3 Inch - - Wire:#22AWG with 22 Armoured Cable - Alum Case - 104.5*44.5MM - CE,UL,CUL - A:Open or C:Closed& Open
Model No.: MCS-3302
Surface Mount Contact
Reed Switch / Open or Close Loop - Breakdown Voltage 100v / Max.Switch Current 0.5A - 1 1/4 Inch - 14*12.3 mm - #22 AWG 18 - Screw Mount ABS - 50 * 14mm - UL , CUL, CE -

Model No.: MCS-2202
Surface Mount Contact
Reed N/O - Breakdown Voltage 100v / Max.Switch Current 0.5A - 1.25 INCH - Optional - #22 AWG 18 - ABS Screw Mount or Self Adhesive - 51MM *9 MM * 13.5MM - UL , CUL, CE - A:Open or C:Closed& Open

Model No.: MCR-2101T
Recessed Mounted
Reed Switch / Open or Close Loop - Breakdown Voltage 100v / Max.Switch Current 0.5A - 1 Inch - Alnico 9.5*23L or 9.5*20L - AWG #22UL 1007 - ABS Plastic - 24.5(Dia.) 0.965 Inch - UL , CUL, CE - B: SPDT
Model No.: MCS-4102
Surface Mount
Open or Close Loop - Breakdown Voltage 100v / Max.Switch Current 0.5A - 2.75 Inch - Optional - Screw Mount - ABS Plastic - 14mm * 110mm - UL , CUL, CE - A: Open C: Closed & Open

Model No.: MCR-3101
Recessed Mounted
Open or Close Loop - Breakdown Voltage 100v / Max.Switch Current 0.5A - 1.25 Inch - Optional - UL#22 AWG 18 - White ABS Plastic - Dia9* 32MM - UL ,CE - A: Open C: Closed & Open

Model No.: MCS-1102
Surface Mounted
Closed Loop - Breakdown Voltage 100v / Max.Switch Current 0.5A - 1.125 Inch - Optional - AWG #22UL 1007 - White ABS Plastic - 33.5*13.5*7.5MM - UL ,CE,CUL - A: Open C: Closed & Open
Model No.: MCS-3102
Surface Mounted
Closed Loop - Breakdown Voltage 100v / Max.Switch Current 0.5A - 1.25 Inch - optional - Spacers, Cover and Screws Included - White ,Brown ,Grey ABS - 65*19.2*5MM - UL ,CE,CUL - A:Open or C:Closed& Open

Model No.: MCR-1101
Recessed Mounted
Closed Loop - Breakdown Voltage 100v / Max.Switch Current 0.5A - 0.75Inch - - Standard 18 - White ,Brown ,Grey - 11mm(dia.)*14.5mm - UL ,CE,CUL - A:Open or C:Closed& Open

Model No.: MCR-1101MD
Recessed Mounted
Closed Loop - Breakdown Voltage 100v / Max.Switch Current 0.5A - 0.5Inch - - Standard 18 - White ,Brown ,Grey - 11mm(dia.)*14.5mm - UL ,CE,CUL - :A:Open or C:Closed& Open

Showing1-12 of 38 Next >>
