PCB Terminal Block


Model No.: 300-500
Voltage rating : 250VAC
Current rating : 16Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 14-22AWG
Operation temperature : -33?to+120?
Torque : 4kg-cm/M3


Model No.: 300R-500
Voltage rating : 250VAC
Current rating : 16Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 14-22AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M3
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

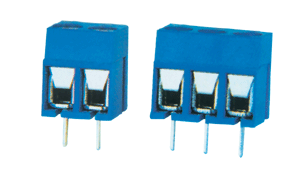

Model No.: 305-500
Voltage rating : 250VAC
Current rating : 16Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 14-22AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M2.5


Model No.: 300-750
Voltage rating : 250VAC
Current rating : 16Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 14-22AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M3
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Model No.: 301-500
Voltage rating : 250VAC Current rating : 16Amps/way max. Insulation resistance : 5000M?/1000V Wire range : 14-22AWG Operation temperature : -33? to+120? Torque : 4kg-cm/M2.5


Model No.: 301R-500
Voltage rating : 250VAC
Current rating : 16Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 14-22AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M2.5
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Model No.: 350-350
Voltage rating : 125VAC
Current rating : 10Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 18-22AWG
Operation temperature : -33? to+120?
Torque : 1.5kg-cm/M2


Model No.: 350R-350
Voltage rating : 125VAC
Current rating : 10Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 18-24AWG
Operation temperature : -33? to+120?
Torque : 1.5kg-cm/M2
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Model No.: 126-500
Voltage rating : 300VAC
Current rating : 8Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 14-26AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M2.5


Model No.: 126R-500
Voltage rating : 300VAC
Current rating : 8Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 14-26AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M2.5
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Model No.: 128-500 / 128-750
Voltage rating : 300VAC
Current rating : 10Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 12-24AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M2.5

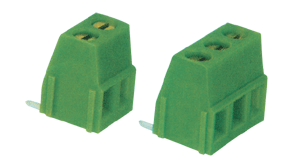

Model No.: 128R-500 / 128R-750
Voltage rating : 300VAC
Current rating : 10Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 12-24AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M2.5
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Model No.: 166-500
Voltage rating : 300VAC
Current rating : 10Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 12-18AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M3


Model No.: 168-500 / 168R-500
Voltage rating : 250VAC
Current rating : 15Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 12-22AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M2.5
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Model No.: 103-500
Voltage rating : 300VAC
Current rating : 10Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 12-24AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M2.5


Model No.: 102-500
Voltage rating : 300VAC
Current rating : 10Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 12-242AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M2.5
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Model No.: 332K-500
Voltage rating : 250VAC
Current rating : 10Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 14-22AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M2.5


Model No.: 332J-500
Voltage rating : 250VAC
Current rating : 10Amps/way max.
Insulation resistance : 500M?/1000V
Operation temperature : -55? to+105?
Contact retention force :2kg
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Model No.: 125-381
Voltage rating : 150VAC
Current rating : 6Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 16-22AWG
Operation temperature : -33? to+120?
Torque : 2kg-cm/M2


Model No.: 125H-381
Voltage rating : 150VAC
Current rating : 6Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 16-24AWG
Operation temperature : -33? to+120?
Torque : 2kg-cm/M2
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Model No.: 125A-381
Voltage rating : 150VAC
Current rating : 6Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 16-24AWG
Operation temperature : -33? to+120?
Torque : 2kg-cm/M2


Model No.: 125B-381
Voltage rating : 150VAC
Current rating : 6Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 16-24AWG
Operation temperature : -33? to+120?
Torque : 2kg-cm/M2
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Model No.: 128I-500 / 128I-508
Voltage rating : 300VAC
Current rating : 10Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 12-24AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M2.5


Model No.: 128IH-500 / 128IH-508
Voltage rating : 300VAC
Current rating : 10Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 12-24AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M2.5
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Model No.: 128IA-500 / 128IA-508
Voltage rating : 300VAC
Current rating : 10Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 12-24AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M2.5


Model No.: 128IB-500 / 128IB-508
Voltage rating : 300VAC
Current rating : 10Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 12-24AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M2.5
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Model No.: 127-500 / 127-508
Voltage rating : 250VAC
Current rating : 10Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 16-26AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M2.5


Model No.: 129-500 / 129R-508
Voltage rating : 300VAC
Current rating : 10Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 12-24AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M2.5
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

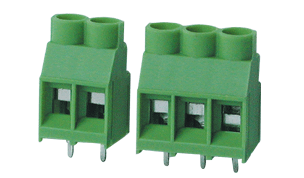

Model No.: 135-635
Voltage rating : 300VAC
Current rating : 15Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 10-24AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M3

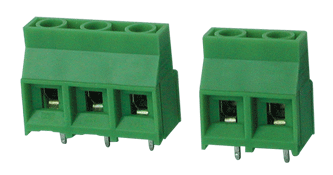

Model No.: 150-950
Voltage rating : 300VAC
Current rating : 30Amps/way max.
Insulation resistance : 5000M?/1000V
Wire range : 10-26AWG
Operation temperature : -33? to+120?
Torque : 4kg-cm/M3
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------


Model No.: 145R-500 / 145V-500
Voltage rating : 300VAC
Current rating : 15Amps/way max.
Insulation resistance : 1000M?/500V
Wire range : 12-22AWG
Operation temperature : -40? to+105?
Screw Torque Value : 4kg-cm/M2.5
--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
