Showing1-12 of 33 Next >>

Model No.: ESP23PA4.8
Size DxH (mm): 23X4.8
Rated Impedance(ohm): 8+/-15%
Rated Power(W): 0.25
Max.Power(W): 0.3
Resonant Frequency(Hz): 600+/-20%
Frequency Range (Hz): Fo -7000
Sound Pressure Level(dB): 82+/-3
Operating Temperature (°C): -20 ~ +55

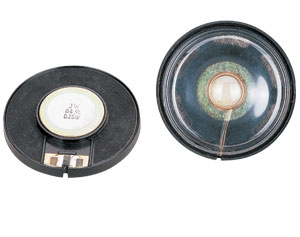

Model No.: ESP27PA8
Size DxH (mm): 27X8
Rated Impedance(ohm): 8+/-15%
Rated Power(W): 0.25
Max.Power(W): 0.5
Resonant Frequency (Hz): 350+/-20%
Frequency Range (Hz): Fo -5000
Sound Pressure Level(dB): 78+/-3
Operating Temperature (°C): -20 ~ +55

Model No.: ESP27PA5
Size DxH (mm): 27X5
Rated Impedance(ohm): 8+/-15%
Rated Power(W): 0.25
Max.Power(W): 0.5
Resonant Frequency (Hz): 750 20%
Frequency Range (Hz): Fo -7000
Sound Pressure Level(dB): 84+/-3
Operating Temperature (°C): -20 ~ +55
Model No.: ESP23PA5
Size DxH (mm): 23X5
Rated Impedance(ohm): 8+/-15%
Rated Power(W): 0.25
Max.Power(W): 0.5
Resonant Frequency(Hz): 700+/-20%
Frequency Range (Hz): Fo -5000
Sound Pressure Level(dB): 81+/-3
Operating Temperature (°C): -20 ~ +55

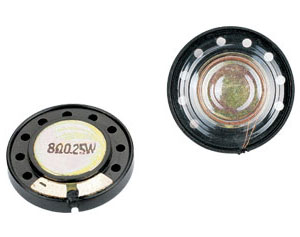

Model No.: ESP29PA5
Size DxH (mm): 29X5
Rated Impedance(ohm): 8+/-15%
Rated Power (W): 0.25
Max.Power (W): 0.5
Resonant Frequency(Hz): 800+/-20%
Frequency Range(Hz): Fo -6000
Sound Pressure Level(dB): 84+/-3
Operating Temperature (°C): -20 ~ +55

Model No.: ESP40PA6
Size DxH (mm): 40X6
Rated Impedance(ohm): 8+/-15%
Rated Power (W): 0.25
Max.Power (W): 0.5
Resonant Frequency(Hz): 700+/-20%
Frequency Range(Hz): Fo -3500
Sound Pressure Level(dB): 86+/-3
Operating Temperature (°C): -20 ~ +55
Model No.: ESP30PA4
Size DxH (mm): 30X4
Rated Impedance(ohm): 8+/-15%
Rated Power (W): 0.25
Max.Power (W): 0.3
Resonant Frequency(Hz): 700+/-20%
Frequency Range(Hz): Fo -6000
Sound Pressure Level(dB): 88+/- 3
Operating Temperature (°C): -20 ~ +55

Model No.: ESP36PA4.3
Size DxH (mm): 36X4.3
Rated Impedance(ohm): 8+/-15%
Rated Power (W): 0.25
Max.Power (W): 0.3
Resonant Frequency (Hz): 500+/-20%
Frequency Range(Hz): Fo -7000
Sound Pressure Level(dB): 89+/-3
Operating Temperature (°C): -20 ~ +55

Model No.: ESP50PA7
Size DxH (mm): 50X7
Rated Impedance(ohm): 8+/-15%
Rated Power (W): 0.25
Max.Power (W): 0.5
Resonant Frequency (Hz): 400+/-20%
Frequency Range(Hz): Fo -3000
Sound Pressure Level(dB): 87+/-3
Operating Temperature (°C): -20 ~ +55
Model No.: ESP29PA5.5
Size DxH (mm): 29X5.5
Rated Impedance(ohm): 8+/-15%
Rated Power (W): 0.25
Max.Power (W): 0.5
Resonant Frequency(Hz): 600+/-20%
Frequency Range(Hz): Fo -5500
Sound Pressure Level(dB): 82+/-3
Operating Temperature (°C): -20 ~ +55

Model No.: ESP27PF5
Size DxH (mm): 27X5
Rated Impedance(ohm): 8+/-15%
Rated Power (W): 0.25
Max.Power (W): 0.5
Resonant Frequency(Hz): 800+/-20%
Frequency Range(Hz): Fo -6000
Sound Pressure Level(dB): 81+/-3
Operating Temperature (°C): -20 ~ +55

Model No.: ESP34PF8.5
Size DxH (mm): 34X8.5
Rated Impedance(ohm): 8+/-15%
Rated Power (W): 0.25
Max.Power (W): 0.5
Resonant Frequency(Hz): 700+/-20%
Frequency Range(Hz): Fo -5000
Sound Pressure Level(dB): 85+/-3
Operating Temperature (°C): -20 ~ +55

Showing1-12 of 33 Next >>
