Showing1-12 of 16 Next >>

Model No.: ECS-65T2
Type:Ceiling Speaker
Power rating:80 Watts MAX
Impedance:4/8 Ohm
Transformer mount posts.:5,15 WATTS
Frequency response:70 Hz To 15 KHz
Sensitivity:90dB at 1 Watt/Meter
Frame size:230 * 90 MM
Drivers:6.5 Inch
Cutout dimensions:196MM

Model No.: ECS-622AS
Type:Ceiling Speaker 6.5 Inch 3 Way
Power rating:5 Watts/40 Watts
Impedance:4/8 Ohm
Transformer mount posts.:5,15 Watts
Frequency response:70Hz to 20kHz
Sensitivity:91 dB/W at 1 meter
Frame size:230 * 90 MM
Drivers:6.5 Inch
Cutout dimensions:196MM

Model No.: ESC-65S
Type:Ceiling Speaker 6.5 Inch
Power rating:50 Watts MAX
Impedance:Switchable 8 or 16 Ohm
Transformer mount posts.:5,15 Watts
Frequency response:55Hz20kHz
Sensitivity:90dB /W at 1 meter
Frame size:230 * 90 MM
Drivers:6.5 Inch
Cutout dimensions:196MM

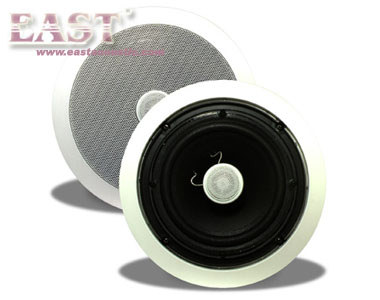

Model No.: ECS-803
Type:Ceiling Speaker
Power rating:5 WATTS/40 WATTS
Impedance:8 OHM
Transformer mount posts.:5,15 WATTS
Frequency response:50 To 13 KHZ
Sensitivity:89dB/W/M
Frame size:275 *95 MM
Drivers:8 Inch
Cutout dimensions:240 MM

Model No.: ECS-804
Type:Ceiling Speaker
Power rating:10/100WATTS
Impedance:4/8 OHM
Transformer mount posts.:5,15 WATTS
Frequency response:62Hz20kHz
Sensitivity:90dB/W at 1 meter
Frame size:360 * 255 *90 MM
Drivers:8 Inch
Cutout dimensions:325 * 220 MM

Model No.: ECS-65S
Type:Ceiling Speaker
Power rating:60 Watt
Impedance:8 Ohm
Transformer mount posts.:5,15 WATTS
Frequency response:60 Hz-24 kHz
Sensitivity:88 DB/W/M
Frame size:305 * 220* 75 MM
Drivers:6.5 Inch
Cutout dimensions:275 * 190 MM
Model No.: ECS-502
Type:Ceiling Speaker
Power rating:10 Watts MAX
Impedance:40hm
Transformer mount posts.:
Frequency response:80Hz to 2KHz
Sensitivity:92db
Frame size:25*17.5*10(5.5)cm
Drivers:
Cutout dimensions:

Model No.: ECS-652
Type:Ceiling Speaker
Power rating:15 Watts MAX
Impedance:40hm
Transformer mount posts.:
Frequency response:80Hz to 2KHz
Sensitivity:92db
Frame size:22*18*8cm
Drivers:
Cutout dimensions:

Model No.: ECS-520W
Type:Ceiling Speaker
Power rating:25 Watts MAX
Impedance:40hm
Transformer mount posts.:
Frequency response:80Hz to 2KHz
Sensitivity:90db
Frame size:19.5*27.5cm(W*H)
Drivers:
Cutout dimensions:
Model No.: ECS-650W
Type:Ceiling Speaker
Power rating:30 Watts MAX
Impedance:40hm
Transformer mount posts.:
Frequency response:60Hz to 20KHz
Sensitivity:91db
Frame size:21.8*30.5cm(W*H)
Drivers:
Cutout dimensions:

Model No.: ECS-802W
Type:Ceiling Speaker
Power rating:35 Watts MAX
Impedance:40hm
Transformer mount posts.:
Frequency response:60HZ to 20KHz
Sensitivity:91db
Frame size:24.5*36cm(W*H)
Drivers:
Cutout dimensions:

Model No.: ECS-501C
Type:Ceiling Speaker
Power rating:20 Watts MAX
Impedance:40hm
Transformer mount posts.:
Frequency response:
Sensitivity:
Frame size:
Drivers:
Cutout dimensions:

Showing1-12 of 16 Next >>
