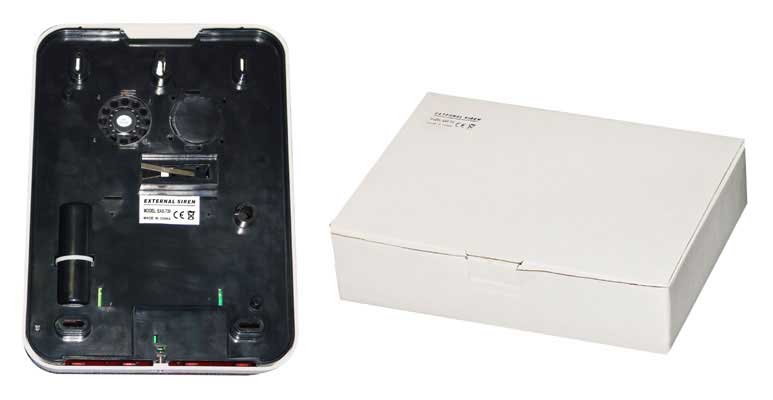

  EAS-730
Type: Piezo Siren with strobe
ImpedancePiezo elements
Input Voltage:12 VDC
Oper Voltage:6 To 15VDC
Min SPL:118 dB at 12VDC/1m
Max Current:250 mA at 12VDC (one piezo)
Flash Rate :115 +/- 15 Per Minute
Strobe Len:Acrylic Lens
Tone Nature:Warble
Housing:White ABS Plastic
weight:1.2Kg/200mm*155mm
Remark:Microprocessor With Tamper Switch


    Description:


4 different siren tone
High/low speed sounder
Delay time with warning tone
Configurable cutoff timer
SAB/SCB operating mode
Sliding light
Test Button
Rechargeable NI-MH Battery
Sabotage Switch
Second Sabotage Switch against Cover Screw protection
ABS Cover
Polycarbonate cover
Metal Cover Against Impact
2 Piezo SOUNDER

Microprocessor Design
