8"color TFT-LCD Monitor
Color System:PAL-4.43 / NTSC-3.58
Display Screen:Diagonal 8 inches / 202mm (4:3)
High Resolution:921600 pixels (640*480)
1440000 pixels (800*600)
Audio Output:>100mW
Contrast Ratio:200:1
Brightness:350cd/m2
Viewing Angle:45/60(U/D), 65/65(L/R)
|
|
|
|
|
|
|
|
|
7"color TFT-LCD Monitor
Color System:PAL-4.43 / NTSC-3.58
Display Screen:TFT 178mm (16:9)
High Resolution:339600 pixels (480*234*3)
Receive Channel:
Audio Output:>100 Mw
Impedance:75
Contrast:250:1
Brightness:300cd/m2
Angle of View:45/45(L/R), 45/60(U/D)
Input |
|
|
|
|
|
|
|
|
7"color TFT-LCD Monitor
Color System:PAL-4.43/ NTSC-3.58
Display Screen:TFT 178mm 319GL-70NP 7.0"(16:9)
339600 pixels (480*234*3)
Receive Channel:VHF 1-12; UHF 13-68; CATV
Audio Output:>100 Mw
Impedance:75
Contrast:250:1
Brightness:300cd/m2
Angle of View:45/45(L/R), 4 |
|
|
|
|
|
|
|
|

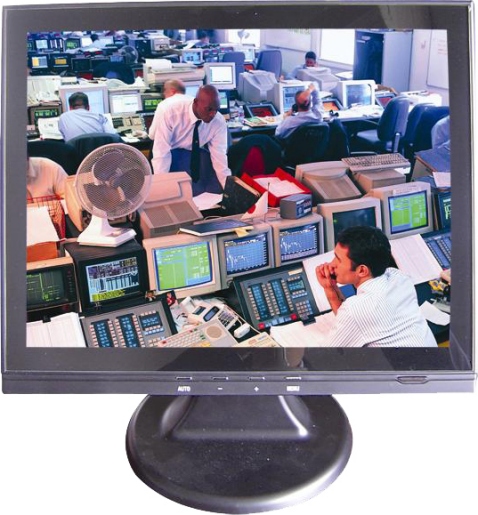

15"TFT LCD Monitor
Viewing area:15"TFT LCD
Viewing range:304.1(H) X 228.1(V) 4:3
Screen life-span:
Max resolution:1024X768/75HZ
Brightness:350cd/m2
Contrast ratio:400:1
Response time:8-16ms
Viewing angle:H/V: 170o/140o
System of signal:PAL/NTSC Auto change
|
|
|
|
|
|
|
|
|
15"TFT LCD Monitor
Viewing area:15"TFT LCD
Viewing range:304.1(H) X 228.1(V) 4:3
Screen life-span:
Max resolution:1024X768/75HZ
Brightness:350cd/m2
Contrast ratio:400:1
Response time:8-16ms
Viewing angle:H/V: 170o/140o
System of signal:PAL/NTSC Auto change
|
|
|
|
|
|
|
|
|
