  EAS-202
Type: Outdoor Siren
Nominal Voltage:13.8V
Alarm current:1.4A(max*2.8A)
Voltage on terminal[+N]:13.8V+/-0.2V
Current on terminal[+N]:max 0,6A
Min.(max) supply voltage:10V(13.8V)
Battery requirements:2Ah(177*34*66)min
Maximum alarm-time(programmable):3-10min
Protection grade:IP34
Temperature range:-25oC+55oC
Dimensions:208*252*98mm
Weight(without 2AH battery):2300g

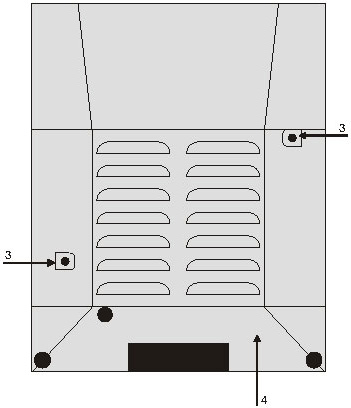

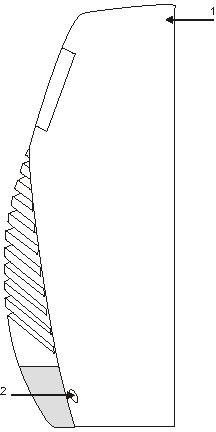

    Description:


1.Cover
2.Cover screw locations(2)
3.Innerplate screw locations(2)
4.Protective innerplate
5.Backplate anchor screw locations(2)
6.Battery location

7.Exponential horn
8.Connector for strobe board of flasher bulb
9.Connector for tamper device switch
10.Terminal board
11.Tamper device
12.Tamper device bracket

13.Strobe board
14.Strobe board screws(2)
15.Strobe
16.Cable entry
17.Alternative flasherbulb
