  PDF Size:12KB
Click:81893
  EAS-315
Type: Outdoor Siren
ImpedancePiezo sounder
Input Voltage:12VDC +/-15%
Oper Voltage:12VDC +/-15%
Min SPL:115 dB at 12VDC/1m
Max Current:270 mA at 12VDC
Flash Rate :115 +/-15 Per Minute
Strobe Len:PC Lens(Blue or Red
Tone Nature:Warble
Housing:ABS White
weight:1.1 Kg
Remark:Microprocessor design, Ni-ca battery


    Accessories:

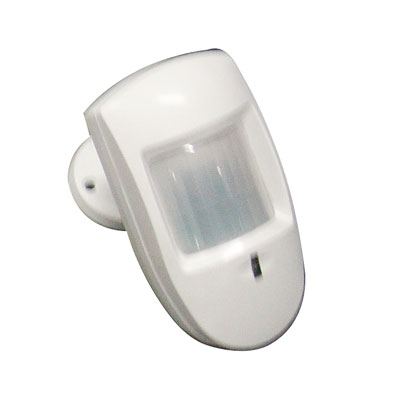

Wireless PIR detector DPS-55
1.Specification
power:DC9V 6F22 battery detect angle:110°
static current:30µA remote control distance:>=30m(wide place)
detect distance:12m installation height:2m
+sense,emission LED

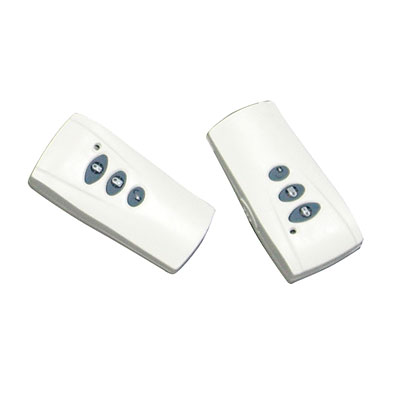

4-key remote controller
1.specification
power:DC3V ( lithium battery)
static current:<1µA emitting current:<8mA
remote control distance:>=30m(wide place)

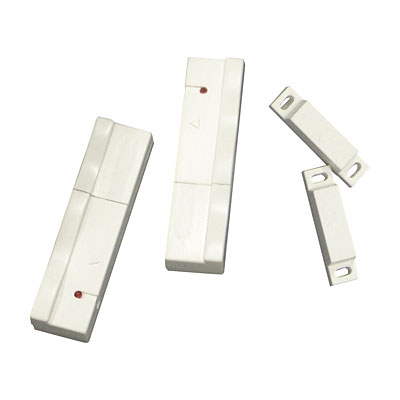

Wireless door magnetism MCS-204R
1.it transmit the signal of the door/ window's opening or closing to the main;
2.Tamper design: Under the condition that the triangle on emitter aims at triangle on magnetism, when the battery lid is removed, it will emit signal to the main.
