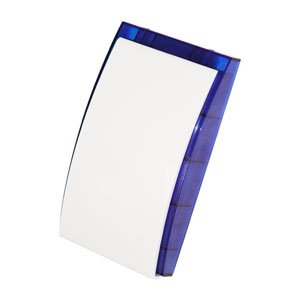

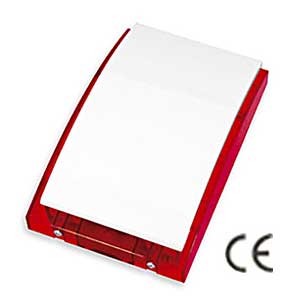

  EAS-4002
Type: Piezo Outdoor Siren
ImpedancePiezo sounder
Input Voltage:12VDC +/-15%
Oper Voltage:12VDC
Min SPL:115 dB at 12VDC/1m
Max Current:270 mA at 12VDC
Flash Rate :115 +/-15 Per Minute
Strobe Len:PC Lens(Blue or Red)
Tone Nature:Warble
Housing:White PC Plastic
weight:1.1 Kg
Remark:Microprocessor design, 6V.1.3Ah battery


    Description:


compatible with all alarm control panels
acoustic signal - piezo
optical signal - xenon strobe tube
4 different sounds available
2 controlling inputs
highly resistant polycarbonate housing
tamper protection
- against opening
- against pull-off
galvanized steel inner cover
impregnated electronic circuits
individual power supply - 6V 1,3 Ah battery included

Microprocessor based desig
Prezentare acoustic signal - piezo
optical signal - xenon strobe tube
tamper protection
- against opening
- against pull-off
galvanized steel inner cover
impregnated electronic circuits

CE Declaration of Conformity
