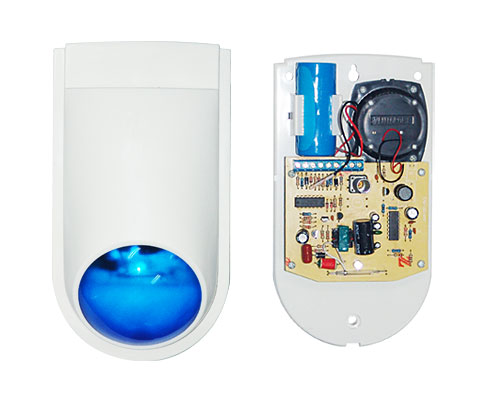

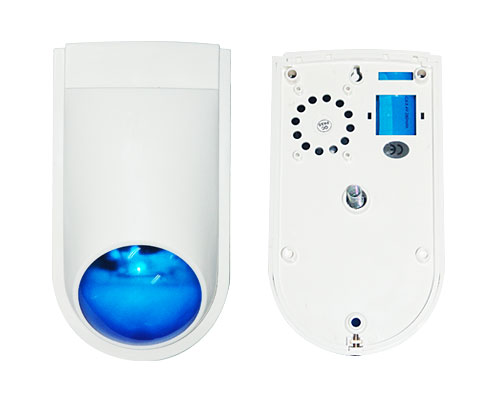

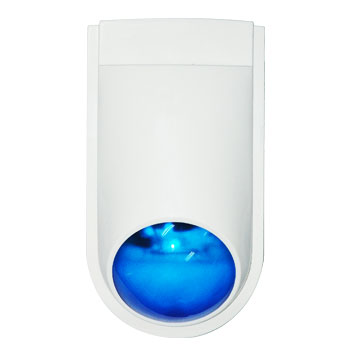

  EAS-2011
Type: Piezo siren with strobe
ImpedancePiezo Element 35mm
Input Voltage:12 VDC
Oper Voltage:9 To 15VDC
Min SPL:112+/-3 dB (at 12VDC/1m)
Max Current:200 mA Max(at 12VDC)
Flash Rate :70/Minute
Strobe Len:Acrylic Lens
Tone Nature:HI LO
Housing:ABS/WHITE(UV Resistance)
weight:295+/-20g
Remark:Bule/Red Strobe light, Piezo Siren tone nature


    Description:


Size:
Length - 20cm
Width - 11.2cm
Depth - 8cm

Specifications:
Operating Voltage - 9-15VDC.
Rating Voltage - 12VDC.
Strobe Current - 110mA.
Sirent Current - 200mA.
SPL - 108dB/m.

Model: EAS-2011BAT

White Siren Cover with built-in blue strobe and tamper switch
Remark: With rechargeable Battery NiCd 8.4V.280AH

TWO different Models.
Model: EAS-2011BAT & EAS-2011
