  PDF Size:1.1MB
Click:79193
  BS-1
Type: Outdoor siren with strobe
Impedance8 0HM
Input Voltage:6 To 15VDC
Oper Voltage:6 To 15VDC
Min SPL:120dB SPL/Meter
Max Current:1400
Flash Rate :120 permin
Strobe Len:Acrylic Lens
Tone Nature:Warble
Housing:White ABS Plastic
weight:1.3Kg
Remark:Electronic board, OEM ready


    Description:


Outdoor battery back-up siren with flashlight.

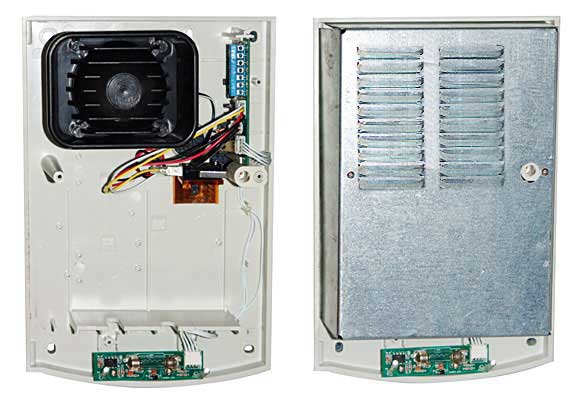

Double housing: external-3mm plastic PC with UV,internal-0.8mm metal.
Continuous frequency modulated sound
Tamper protection in 3 ways - screw or cover opening or tearing housing from the wall
Positive and negative alarm trigger inputs
Trigger input to activete only the flashlight
Siren period can ser as follow trigger or 3 min cutoff
Selector for lamp or Xenon
Alarm by main power failure
Protecting against totally battery discharge.
Plug terminal for easy installation
Environmental immunity

Outdoor battery back-up siren with flashlight.
Tamper protection in 3 ways - screw or cover opening or tearing housing from the wall
Positive and negative alarm trigger inputs
Trigger input to activete only the flashlight
Siren period can ser as follow trigger or 3 min cutoff
Selector for lamp or Xenon
Alarm by main power failure
Protecting against totally battery discharge.
Plug terminal for easy installation
Environmental immunity

Microprocessor Design

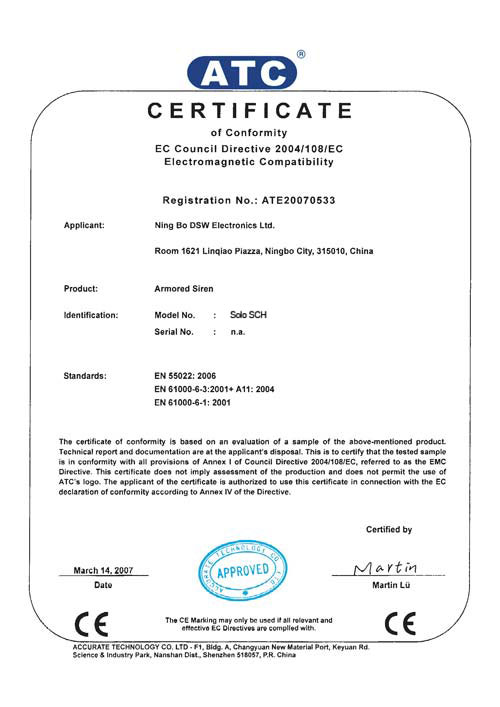

CE APPROVAL
