Video Standard：PAL:50fields/second NTSC:60fields/second
Digital Memory：PAL:720?76 NTSC:720?80
Video Input：4 loops BNC 1.0Vp-p composite 75ohms
Video Output：1.0Vp-p 75Ω
VCR Input：1.0Vp-p 75Ω
VCR Output：1.0Vp-p 75Ω
Alarm Input：4 Active TTL High/Low Input(one mating connector)
Alarm Output：1 Programmable as Normally Open or Normally Close
Alarm Duration：0-30seconds
Alarm Mode：Video Loss Alarm ,Video Motion Alarm, External Alarm
Display Mode：Sequence Switch , Single picture, PIPZOOM Function, Four pictures, Freezing
Power Consumption：DC12V 6W
Net Weight：1.3kg
Ambient Temperature：-30℃~60℃

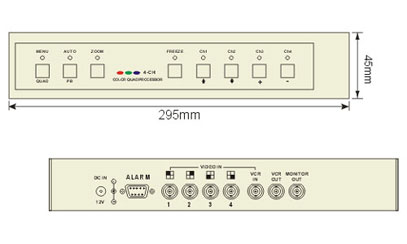

Dimension：295mm(W)?10mm(D)?5mm(H)
|
|
|
|
