      Model No : DSW06
World Electric Guide

   Specification
  • Power: 12VDC(power adapter convert)
  • Standby Power: DC12V(changeable battery)
  • Working Frequency: 433MHz or 315MHz
  • Remote Control Distance: >30m(open position)
  • Static Current: 150mA
  • Battery group waiting time: 90Min
  • Factory Setting:
  • System delay: 0Sec
  • Alert: 300Sec
  • Dial times: 3
  • Report: no report
  • Vibrant ring times: 8
    •
       Function
    1. 4+8 arm zone
    DSW06 has 4 wired arm zones and 8 wireless arm zones.
    2. English display
    Its operation and setting all be displayed by English and operation is more conbenient and shortcut.
    3. Functon mighiness
    Possessing multiple programmable function setting,operation and setting is simple,standby power for 24 hours.
    4. One key operation
    You need only press [AWAY] or [HOME] key to set arm/stay,you can also use remote controller to arm/disarm.Under any state disarming need onlu pressing user password.
    5. Numeral speech
    Inner set numeral speech ware,and has 8 section numeral speeches.During iperation,it prompt:"System arm","system disarm";pduring alarming,it can identify detector cutomatically and transmit alarm ingo to receibing alarm telephone,like"fire alarm","gas alarm","security alarm","help alarm".
    6. Password popedom
    It has [system password] and [user password],the two passwords can be set after entering alarm system but respective function popedom is different, that is convenient for manager and operator to control alarm system religiously.
    7. Long-distance remote control
    The alarm can be controlled by keypad and remote controller,by telephone line, it can be long-distance controlled,and fulfill arm/disarm/monitor hearing function.
    8. Intelligent study
    Wireless detector study is very simple. The study time need no 1sec.
    9. Tamper design
    When tamper switch on bottom is not pressed down,it dial and trigger siren to alarm.
    ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

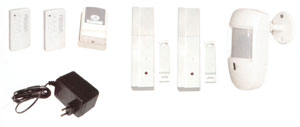

       Basis configuration

    Control Panel (battery include): 1psc
    Power Adapter (Input 110VAC/230VAC, output 9VDC, current 1000mA): 1psc
    Remote Controller (battery include): 2psc
    Doorbell Magnetism(battery include): 2psc
    PIR Sensor(battery include): 1psc
    Siren(>120 db): 1psc
    ---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
        Catalog Information
    Model No. Color Operating Voltage(Vlots) N.W.(KG) G.W.(KG) QTY.(PCS) Packing Size(cm)
    DSW06 White 12VDC 10.5 13.75 6 53.5*50.5*21
