Specifications:
Power requirement:12V DC/200mA
Infrared wavelength:850nm
Modulation:75KHz
Carrier frequency:
- channel A:R 2.8 MHz / L-ch 2.3 Mhz
- channel B:R 3.8 MHz / L-ch 3.2 MHz(For dual channel)
Effective distance:10 meters (straight)
Distortion:1%
Frequency response:20Hz to 20KHz
Power input tolerance:normal 11V to 13V or 5V to 13V
S/N ratio:>55dB
Power consumption:1.0W
Auto input range:0.1V to 3V(RMS)
One transmitter can cover two or more headphones simultaneously
|

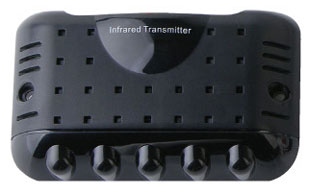

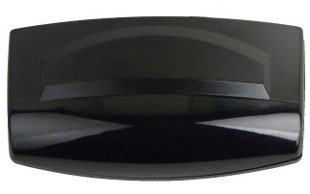

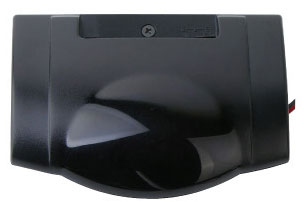

MODEL:EEP-221 EEP-261 EEP-231
A: Single channel for automotive
B: Dual channel for automotivve
C: Single channel for home entertainment
D: Dual channel for home entertainment |
